TMTS Virtual Application
Our founder, Mr. C. F. Chang, established the factory in Taichung City and serviced the metal working industry by one lathe in 1968. Since 1973, we began made the lathe and named as " CHIN HO Machinery Factory ". In 1980, we moved the factory to Ta - Ya, Taichung country and reorganized as CHIN HUNG MACHINERY CO.,LTD. In order to expand the product, we built the new factory for CNC lathe in 1996 and installed next year. We buy the new land located the Taichung Precision Machinery Technological Park and began to build the new modern factory since the end of year 2010 in order to expand the product line to meet the requirement from the customer.

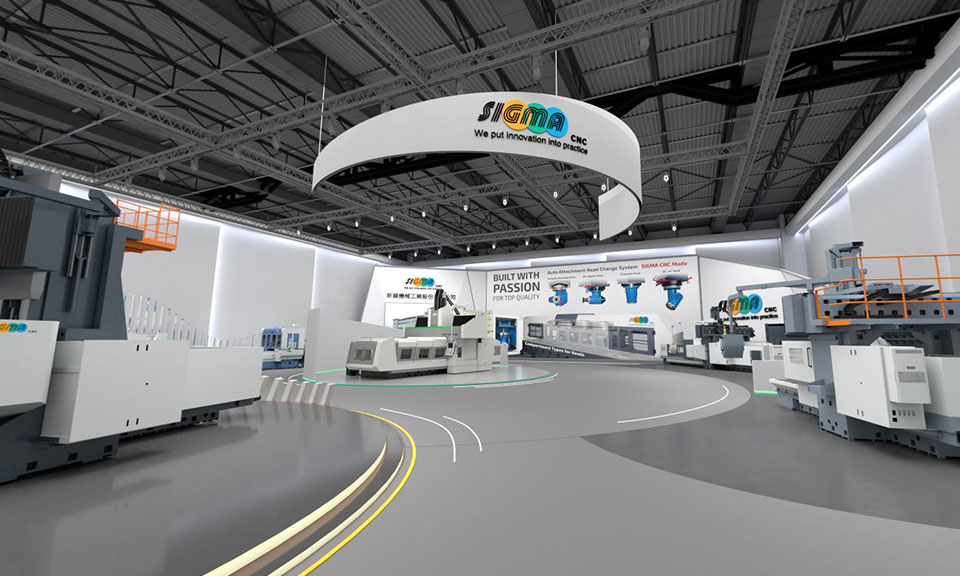

Since its establishment, SIGMA CNC Technology Machinery holds the fundamental concept of “EXPERTISE, INNOVATION, and PERFORMANCE”. Led by President Humor Chuang, the efficiently co-operated teams are running the company’s daily operations. Under the leadership of our President, constant efforts, renovations are made to meet eve changing market challenges. With scientific management, we strive for high efficiency production, stable quality control, best sales and after-service of CNC machines.
The high-precision CNC 5-Axis indexing table of HOSEA meets the most stringent standards in the European market. The products are widely used and favored in Europe, and are well-known by global machine tool manufacturers.
JEENXI Technology Co., Ltd. was established by Mr. S. C. Chen in 2000. Specializing in Machine Tools for R&D and production technology, our main products are high precision and quality 3-axis and 5-axis machining centers. The Machining Centers from Sunmill offer numerous customer-friendly features and comprehensive processing sizes to meet diversified customer’s needs. Customized specifications are also available.
CNC Cutting Tool Solutions Supporting our Partners
Your cutting tools are the key step in your metal cutting process, so choosing the right long term manufacturing partner as your CNC cutting tools solutions provider will be key to your success and profitability.
Established in Taichung City, Taiwan in 2004, by Dr. Pu Hong-Yen, YIDA’s core business scope includes R&D and manufacturing of machine tools. YIDA is currently one of the few machine tool companies in Taiwan with product lines covering horizontal lathes, vertical machining centers and horizontal machining centers. Adopting customer-oriented service principle and strategy, YIDA is well-known for the ability to come up with automation solutions and customized machine tools that best satisfy its customers’ needs.
Founded in 1954, YCM (Yeong Chin Machinery Industries Co. Ltd.) specializes in machine tool manufacturing. YCM machine tools have been recognized worldwide for superior precision, outstanding rigidity and exceptional reliability. Today there are more than 70 makes and models fulfilling the industry’s diverse requirements. With over 60 years of machine tool manufacturing experience, YCM has established a strong foundation in the field of machinery.
Honor Seiki was established in 1987. In the beginning, Honor Seiki had only 8 employees to cooperate with each other. Nowadays, Honor Seiki has 5 factories and their machines are sold around the world. The annual turnover is up to 15 billion which will be recognized as a legend in the Taiwanese machine tool industry.
Accuway Machinery Corporation is one of the leading machine tool builder of vertical machining centers and CNC lathes for various industrial applications. Founded in 1986 by supplying mold and die for semi-conductor industries, it has accumulated abundant precision machining experience and technologies by continuous improvement and innovation.
It's the Pao Fong people who have our commitment alive. They extend quality idea to every aspect of our business activities-form the machine design, manufacturing. Running test, and after sale service, that stress the total value of every Pao Fong milling machine.
專精 創新 實踐<br />S5A-4732HH, 專為加工鈦合金及難削材料等五軸加工零件而打造的重切削型CNC五軸龍門加工中心機; 全機身採高剛性結構體設計, 機械式同動二軸頭, BC軸傳動採蝸桿蝸輪傳動, 搭配自製重切削式兩段變速齒輪箱及齒輪式傳動主軸設計, 最大重切削扭矩可達到1155N-m; 主軸頭軌道設計獨家專利-切削加工抑制振動結構設計, 降低難削材料加工的振動, 提升加工效率、表面精度與刀具壽命; 全封閉式防濺鈑金護罩, 摺疊式操作門且具備超大門寬設計, 整體外觀更結合時尚美學及安全防護的人因設計; 橫樑安全護欄設計, 保護維修人員安全, 方便機械維修作業; 升降式懸臂操作箱, 可隨時調整高度, 配合操作者所需。<br />
追求易操作性與高品質零件, 結合多軸、高精度、高效率與高性價比等多項特色, 特別針對生技醫療、汽、機車與高精度等中小型精密零件產業所開發出新機種, 可輕易完成複雜工件之加工並結合自動化模組, 提供客製規劃服務。
*詳細規格請點閱 www.yidacnc.com
*詳細規格請點閱 www.yidacnc.com
- 床座形式: 前斜45∘後階梯式設計
- Y軸立柱採90∘成正交主柱設計
- X、Y、Z軸採高剛性滾柱線性滑軌設計
- B軸採±110∘旋轉設計
- 可搭配多功能旋轉尾座 (台灣專利案號: M389598) 可0∘、90∘、180∘依加工性質不同而變換角度
- 搭配副主軸功能
- 可搭配自動化模組及裝載功能
- 刀臂式刀庫36支刀, 可依加工件需求選配72支刀
- 整機採模組規劃設計
*詳細規格請點閱 www.yidacnc.com
- Y軸立柱採90∘成正交主柱設計
- X、Y、Z軸採高剛性滾柱線性滑軌設計
- B軸採±110∘旋轉設計
- 可搭配多功能旋轉尾座 (台灣專利案號: M389598) 可0∘、90∘、180∘依加工性質不同而變換角度
- 搭配副主軸功能
- 可搭配自動化模組及裝載功能
- 刀臂式刀庫36支刀, 可依加工件需求選配72支刀
- 整機採模組規劃設計
*詳細規格請點閱 www.yidacnc.com

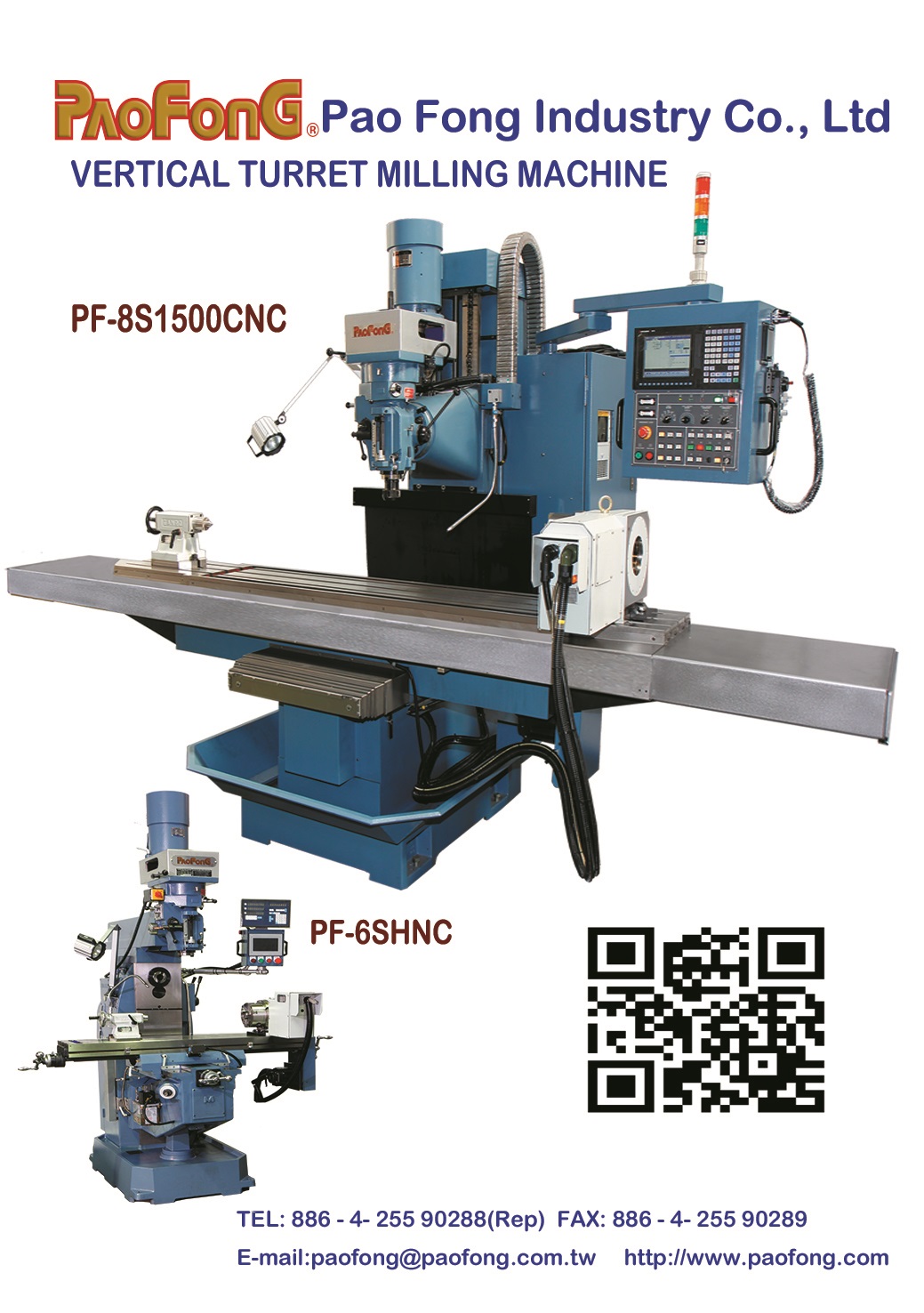

PF-8S1500CNC Bed type 4-axis vertical Bedtype milling machine developed by PAOFONG.Table size: 1730 x 400 mm ) Travel: X = 1500 mm Y = 500 mm Z = 550mmSpindle Taper: NST#40 Machine.It is mainly used for machining of largeCentroid 4 Axes CNC Table and heavy-duty chip removal capacity. This large machine bed is developed for large-sized 4th Rotarl Table.Table design It is built with premium cast-iron .

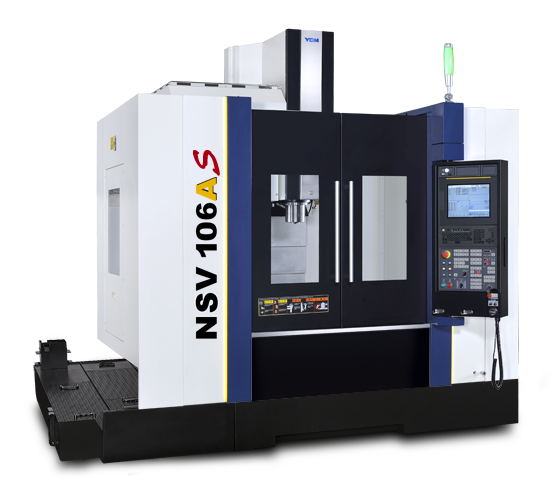

Most Popular High Performance NSV106AS is well suited for superior surface finishing works, specially in automotive, job shop and electronics industries. ￭ Large delta machine column and base ensure the highest stability during high speed movement￭ High precision roller type guideways on all 3 axes￭ High precision linear guideway with 6 slide blocks on X-axis￭ High performance YCM in-house designed spindle with low vibration to achieve excellent finish

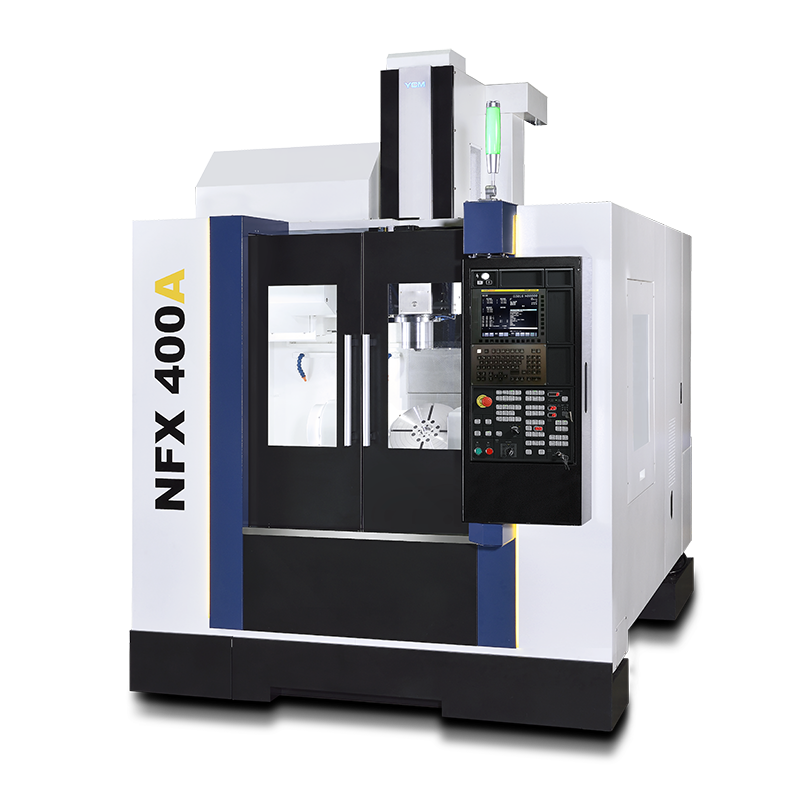

NFX400A is designed especially for small, complex high-quality parts mainly for aerospace, automotive, medical, job shop and die & mold applications￭ Extra wide column and base design to ensure best support and cutting rigidity.￭ Increased tool life by cutting with belly and edge of the tool￭ Reduce fixture error and improve workpiece loading and uploading time￭ Greatly reduced non-cutting or setup waiting time￭ Saves manufacturing cost with reduced fixture and electrode costs.

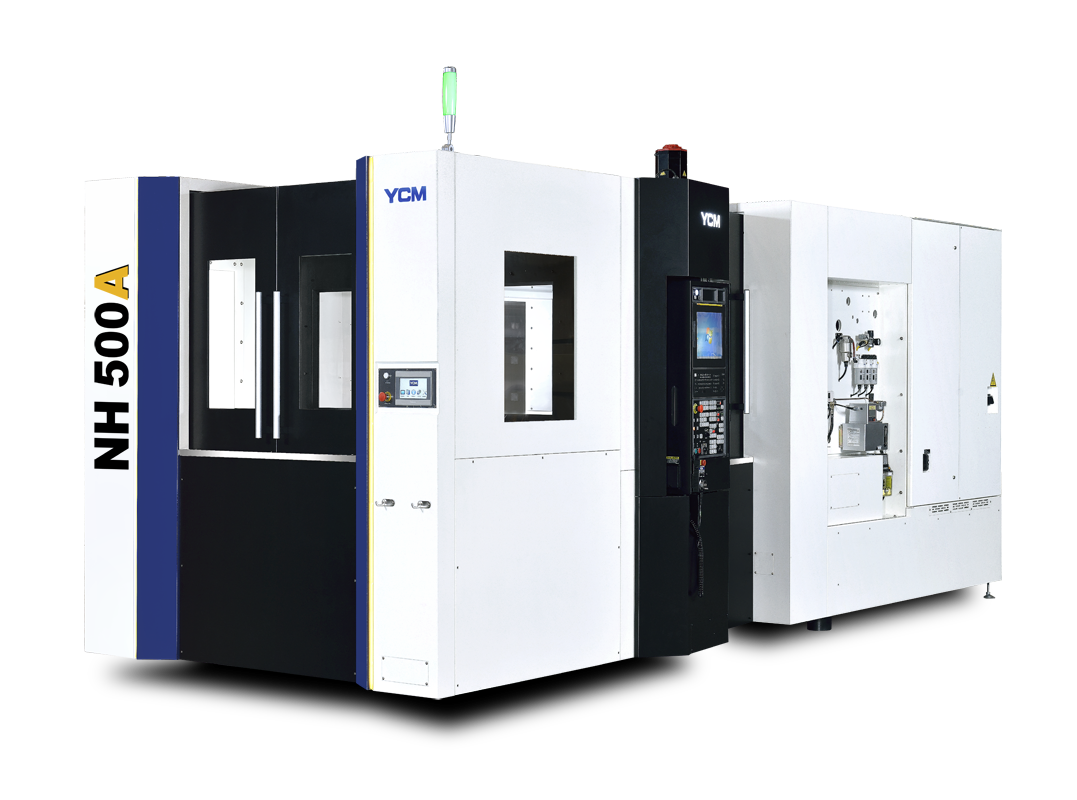

High rigidity and high accuracy NH500A provides the best solution for automotive, precise and mechanical parts industries.￭ High rigidity T-base foundation with rib construction￭ One-piece casting spindle headstock and dual-wall column design￭ Powerful Built-in spindle with Micro oil-air lubrication for angular ceramic ball bearings prolongs spindle life￭ High precision roller type guideways on all axes￭ High precision pallet indexing system.
2080/3080 is designed and developed based on Matrix’s experience of many years in gear cutting tool manufacturing. WT-2080 is built on a base of a highly rigid, high quality cast iron to perform with pin point accuracy. 2080/3080 applies the most advanced technologies available around the globe. With Fanuc CNC controller, a direct drive motor, a linear motor and servo motors, 2080/3080 is able to deliver the accuracy, reliability and precision for double lead grinding, tapper thread grinding, single flank grinding, dual pressure angle grinding, plug thread gage, rolling die, crusher roller, etc.Matrix has developed its own Windows-based software program for 2080/3080. Using an advanced Windows-based, user-oriented interface, 2080/3080 can generate and archive practically infinite number of different profiles and grind/ dressing cycles easily by data input. The flexible dresser can profile the grinding wheels for standard worms, as well as profile the multi-rib grinding wheels for thread grinding with tip and root modifications. 2080/3080 can also grind pump rotors. We highly recommend 2080/3080 for your worm and thread grinding applications.

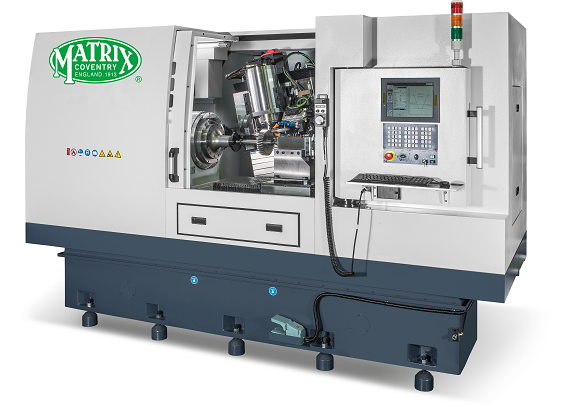

3540 is designed and developed based on Matrix’s experience of many years in gear cutting tool manufacturing. 3540 is built on a base of highly rigid, high quality cast iron to perform with pin point accuracy. 3540 applies the most advanced technologies available around the globe. With FANUC CNC controller, a direct drive motor, a linear motor and servo motors, 3540 is able to deliver the accuracy, reliability and precision a gear expert is looking for.Matrix has developed its own Windows-based software program for 3540. Using an advanced Windows-based, user-oriented interface, this software requires only the final gear data and all other CNC data is calculated automatically. 3540 is a highly technical and highly precise gear grinder that gear grade of DIN 4 (AGMA 14 or JIS 0) can be achieved for standard gear profile at ease.

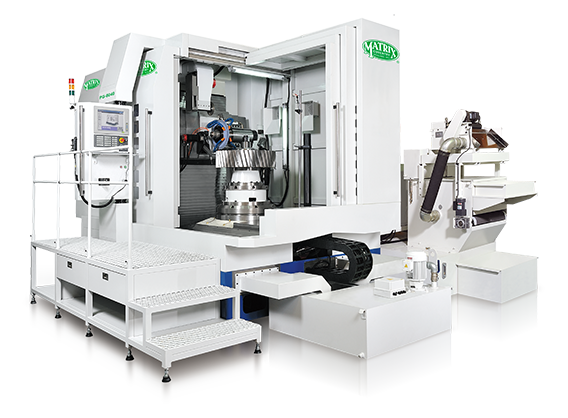

The 8040 is built with some of the most modern technology available, such as an advanced 8-axis CNC controller with a closed loop servo control system, integrated with an industry computer, and a direct drive motor, all of which Matrix utilizes to achieve very high precision over long periods of use. The 8040 includes Matrix’s most technologically advanced smart Windows-based and user-oriented interface to date. This software provides the user the ability of design flexibility for modifying gear profiles and specifying grinding conditions. Matrix has developed this software so that the operator just needs to key in the required gear data in an easy step-by-step process on our Windows-based user-oriented interface. No other numerical control programming knowledge is required since the entire program is generated automatically within the software.
The 3040 is an extremely versatile machine. With Matrix’s available software and fixtures, the 3040 can sharpen straight or helical gashed hobs, shaper cutters and can even grind gears achieving AGMA class 14 (DIN 4) accuracy. The 3040’s base is constructed of a highly rigid, high quality cast iron. Matrix manufactures every machine to perform with pin point accuracy and it all starts with a very stable base. Matrix builds the 3040 using the finest technology in the world. With seven axes, a CNC Fanuc controller, a personal computer, direct drive motors, servo motors and a linear motor, Matrix is able to deliver the accuracy, reliability and precision a gear expert is looking for.Matrix has developed its own Windows-based software programs for the 3040. Using an advanced Windows-based, user-oriented interface, this software requires only the final hob, shaper cutter dimensions and all other CNC data is calculated automatically by Matrix’s smart grinding software program.Matrix’s 3040 CNC hob sharpening machine is a highly technical, highly precise hob sharpener with the option of becoming an impressive shaper sharpener
Spindle housing diameter ： 120mmTool interface ： Quill D22/38 M22XP2.0Maximum speed ： 42,000 RPMLubrication ： Oil-AirMotor power ： 11.5/17 Kw

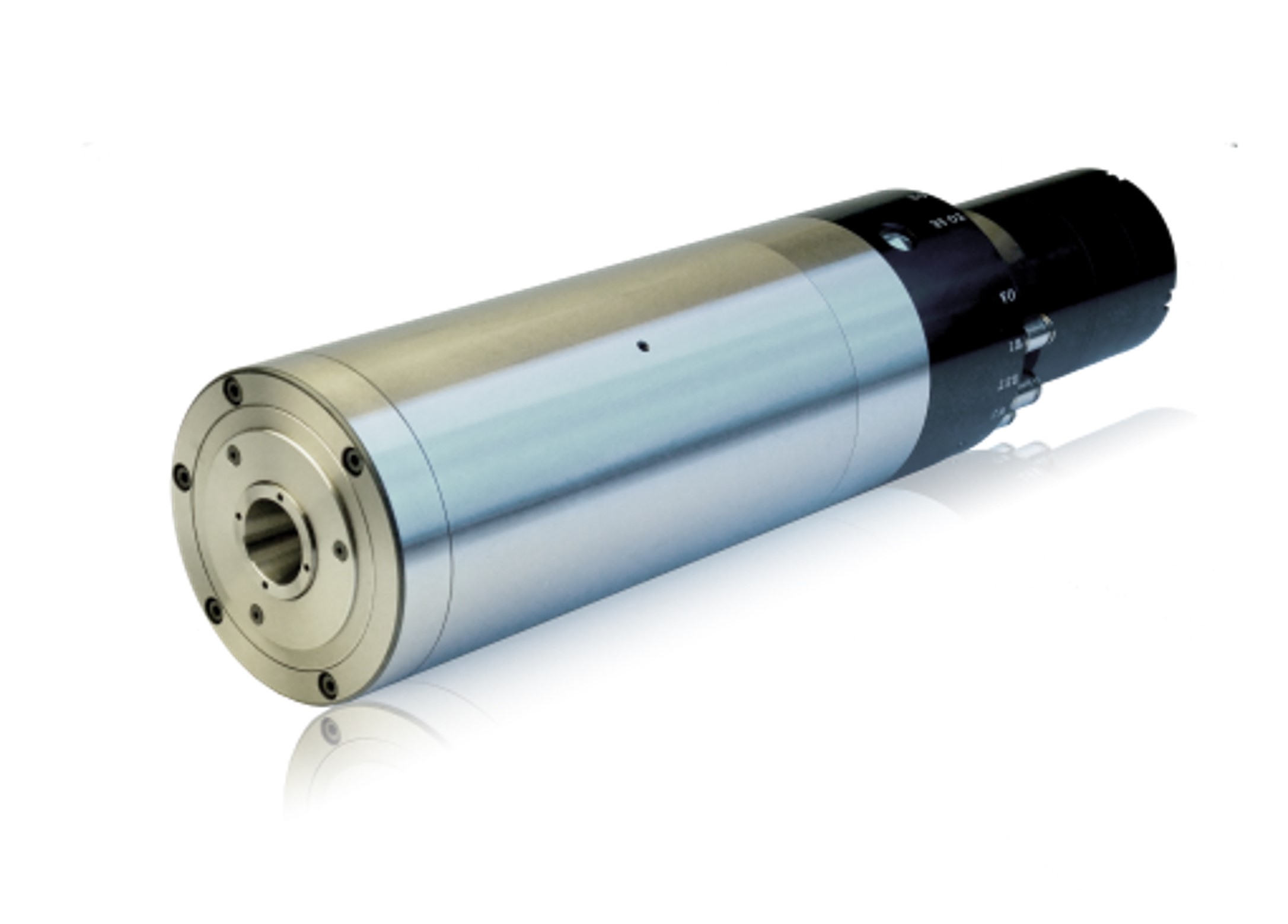

Spindle housing diameter ： 100mmTool interface ： HSK-E32Maximum speed (rpm) ： 30,000 RPMLubrication ： GreaseMotor power ： 3.5/5.5 Kw

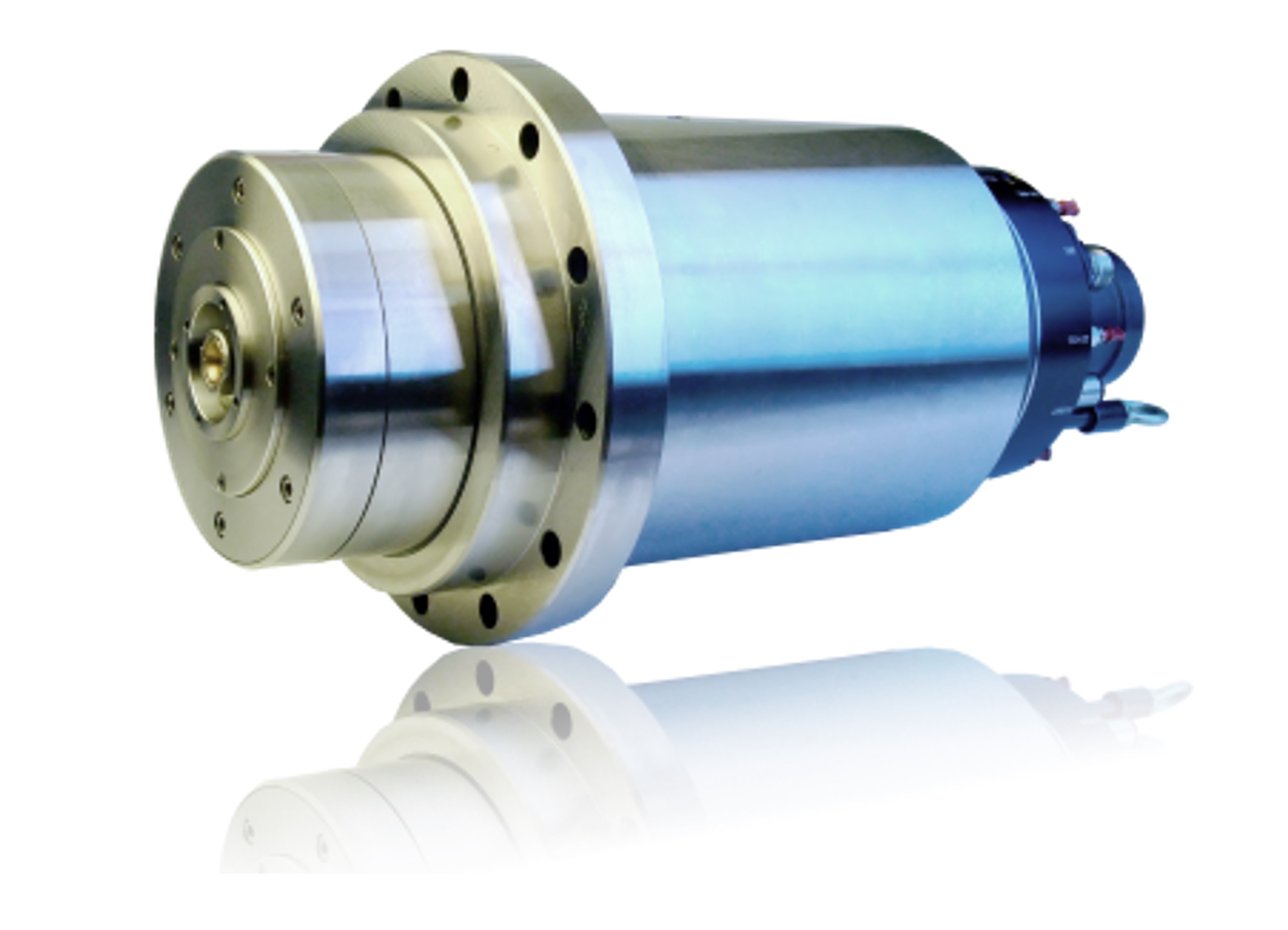

Spindle housing diameter ： 210mmTool interface ： HSK-A63Maximum speed (rpm) ： 20,000 RPMLubrication ： Oil-AirMotor power ： 18/22.5 KW
Spindle housing diameter ： 170mmTool interface ： HSK-A63Maximum speed (rpm) ： 24,000 RPMLubrication ： Oil-AirMotor power ： 18/23 KW

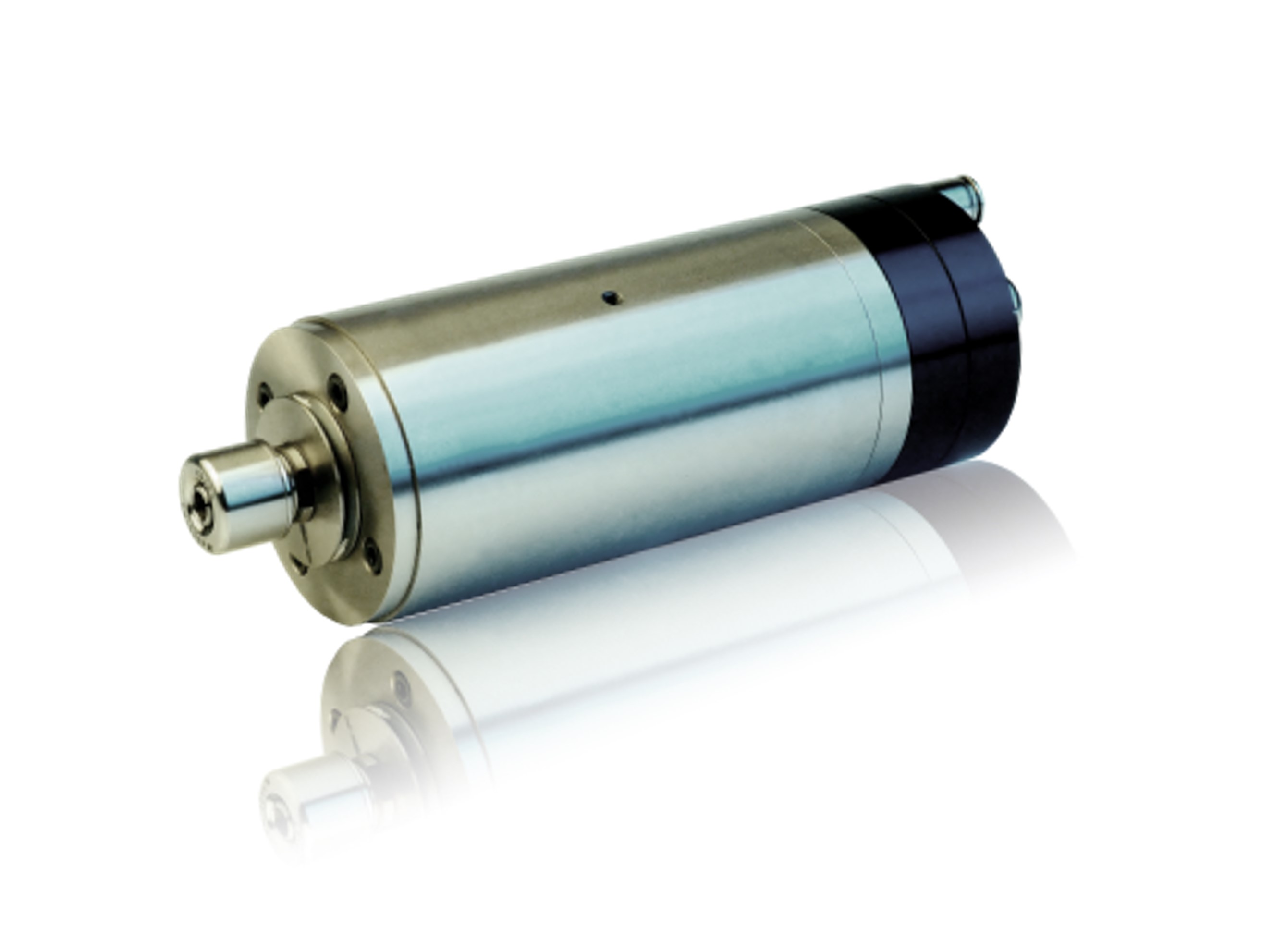

Spindle housing diameter ： 45mmTool interface ： SD6Maximum speed (rpm) ： 50000 RPMLubrication ： GreaseMotor power ： 0.45/0.54 Kw
￭ Robust roller linear guideways applied on 3 axes.
￭ Rigid dual-wall castings on saddle and 6 blocks design on X-axis can easily support workpieces weighing up to 1,500 kg.
￭ 4-linear guideways on Y-axis with superior large span ensures the best dynamic balance.
￭ Large-diameter ball screws on X/Y/Z-axis directlydriven by servomotor, providing rapid feedrate up to 50 m/min.￭ 6 slide blocks on X-axis￭ High torque A/C-axis rotary table can holds a max. workpiece size of ø650 x 400 mm with 300 kg weight.￭ Complete thermal solutions against thermal
High Precision, High Quality, Focus on the Future
Accuway was founded in 1986, supplying molds and dies for semi-conductor industries. It has accumulated abundant precision machining experience and technologies by continuous improvement and innovation. Through this rich experience, in 2002 began to develop and produce CNC lathe and vertical machining centers for versatile industrial applications.
Accuway products have won a wide reputation and positive feedback from a broad range of customers, especially within Taiwan, China, North America and Europe’s competitive markets.
Accuway is seeking to be a leader in the precision machining tool industry, providing integrated, state-of-the-art, automation technology with best solutions to meet the challenges of industry 4.0.
We can provide customers with advanced and efficient manufacturing solutions to provide excellent productivity and versatility. We use the most advanced design techniques to ensure that products have a high level of performance, production, and quality control.
We are represented in all major markets with sales and service bases and qualified service partners.
Our customers include companies from the automobile industry and their suppliers, from general mechanical engineering, energy technology, fluid technology, aerospace and many other sectors.
Accuway’s aim is not solely to produce and sell machines. It involves collaboration in synergy with our customers. This applies to everything, be it internal or external, so that together we can rise to meet their challenges and actively help them succeed.
UZ/UA Series - Multi-axis Machine Center for Mass Production
Increase Your Working Range with large Y-axis on Upper & Lower Turrets
A. Structure
Twin Spindle, Twin Turret
This machine offers multi-axis machining of complex parts with twin, 16-tool power turrets. Twin turrets and a shared Y-axis allow you to produce complex parts with high precision without having to transfer the part. Higher productivity coupled with high accuracy equates to higher throughput and profit potential for today's competitive machine shops.
Twin Y-Axis Machining
The Y-axis control and simultaneous machining capability offers significant advantages over standard machines, allowing it to produce a wide range of complex precision parts.
Flats cannot be machined if there is no Y-axis control to precisely position the cutting tool in the correct orientation on the inner circumference. With a Y-axis control to precisely position the cutting tool, flats can be machined with precision.
B. Specifications
Gear-driven BMT live tool turret
Opposed two-spindle, 2-turret construction
Y-axis on upper turrets 110
16+16 tools changeable tool station
One-piece bed, 45° slant-bed structural design
Distance between spindles: 900mm
Max. Swing: 660 mm
Max. Length: 480 mm
Spindle: A2-6 in 4500 (Belt)
Bar capacity: 52 mm
Main spindle motor 11/15kW (Belt), Sub spindle motor 7.5/11kW (Belt)
C. Applications
Automotive: Camshafts, Linear Guide way, etc.
Construction Machinery: Spool
Industrial Machinery: Sleeve
Agricultural Machinery: Flange
Aerospace Parts
D. Model Reference: https://www.accuway.com.tw/uz-series.htm
About Maintech Precision
Maintech Precision focuses exclusively on the manufacturing of high-end CNC machine tool milling heads. Recognizing the rise of industrial 4.0 and artificial intelligence, we committed to automation and artificial intelligence research and focused on developing complex spindle heads for high-end CNC machines.
We provide our customers with expertise in multi-axis machining applications, and have a complete range of milling heads for five-axis processing machines. We are committed to cooperating with our clients to design and manufacture customized products with high added value, and to providing faster, more economical after-sales service, at a price in line with customer expectations.
We currently supply milling heads used in 5-axis CNC machines used for aerospace and aviation applications, precision molding, or for wind turbine blades. We offer an alternative to the 2-axis spindle heads currently imported mostly from Europe, by providing suitable products and services designed for the Asia market, eliminating the long repair cycle and high maintenance cost of other manufacturers.
Maintech Products
Mechanical spindles
Automatic milling heads
Electric spindles +DD Motor
Five-axis milling heads
Maintech Product Features
Maintech plans and designs the interface between the machine tool and the milling head, making installation easy and simple.
Our mechanical spindle speeds of up to 6000rpm are among the highest in the industry.
Sensor detection inside the milling heads, which meet the needs of Industry 4.0, allow the rapid exchange between various types of milling heads to be realized.
According to the specifications of the machine tool, milling heads are divided into medium and large, and can meet the needs of small as well as large machine tools.
The minimum segmentation angle of A/C axis is 1 degree, for highly reliable stability.
Technical Advantages
Technical Service
Maintech has the ability to design machine tools + two-axis spindle heads. If a manufacturer only produces a single milling head, when the milling head is installed on the machine tool, there will be a precision error after the machine tool and milling head are matched. By designing machine tools with two-axis spindle heads, Maintech can avoid this problem, and provide professional and fast technical services to assist customers in troubleshooting.
Quality Assurance
All parts inside the milling head are measured in the factory to ensure the accuracy of the processed parts. Rotation speed and movement flow are completely verified for accuracy before the product is shipped.
Applications
Mechanical Milling Head
For high torque heavy cutting of difficult-to-cut materials.
Features:
It can reduce the need for repeated clamping of the workpiece, improving machining accuracy and efficiency. It is mainly used for Machining Centers and five-sided machining with gantry milling machines.
Applications Areas:
Wind power and hydropower industries
Rough processing of aerospace industry processes
Automotive industry
Electric Spindle + Direct Drive Motor
For high speed and high precision cutting.
Features:
The built-in electric spindle + direct drive DD motor is suitable for surface processing and high-precision processing required for finely finished surfaces.
Applied for low and medium load fly-cutting of aluminum alloy and composites.
Application Areas:
Processing machinery for electronic products
Aerospace components
Aerospace blade and vane processing
Precision molds
Maintech Precision is a specialist in the field of complex spindle head for high-end CNC machine focusing exclusively on the manufacturing of high-end spindle heads. We are sure we can definitely to fit your needs.
KINWA Brand, Worldwide Reputation of Quality
KINWA LATHE was established in Taichung City in 1973, manufacturing precision high-speed lathes as its foundation, in 1980, we moved the factory to Da-Ya District and reorganized as CHIN HUNG MACHINERY CO., LTD. Since 1990, we have been developing and manufacturing CNC lathes, greatly expanding our market presence. The KINWA brand has gained a well-known, worldwide reputation for high quality lathes.
KINWA’s broad range of excellent quality, high-speed precision lathes are found as standard equipment throughout many Taiwan and overseas manufacturing industries. With the development of CNC lathes, KINWA’s popular, high-tech, Gang-Type and Flat-bed CNC lathes have become essential the manufacturing industry. Over the years, KINWA LATHE has made huge progress in designing and providing customized precision high-speed and CNC lathes.
As the demand for automation growing, KINWA LATHE’s abundant experiences in precision lathe manufacturing enable us to help customers of hand tool manufacturing to plan linear robot automation of lathes and also to cooperate with customers who manufacture home appliance parts to use vibrator bowl to achieve the purpose of automation. Furthermore, we work with a world-famous shock absorber corporation to plan automated load/unload robots to accomplish the purpose of automation to increase productivity and yield rate throughout the entire plant.
With the post-pandemic price of raw materials continually raising, KINWA LATHE still insists on using components made in Taiwan by local manufacturers. We are keeping our commitment to providing only the best quality products and service for our worldwide customers.

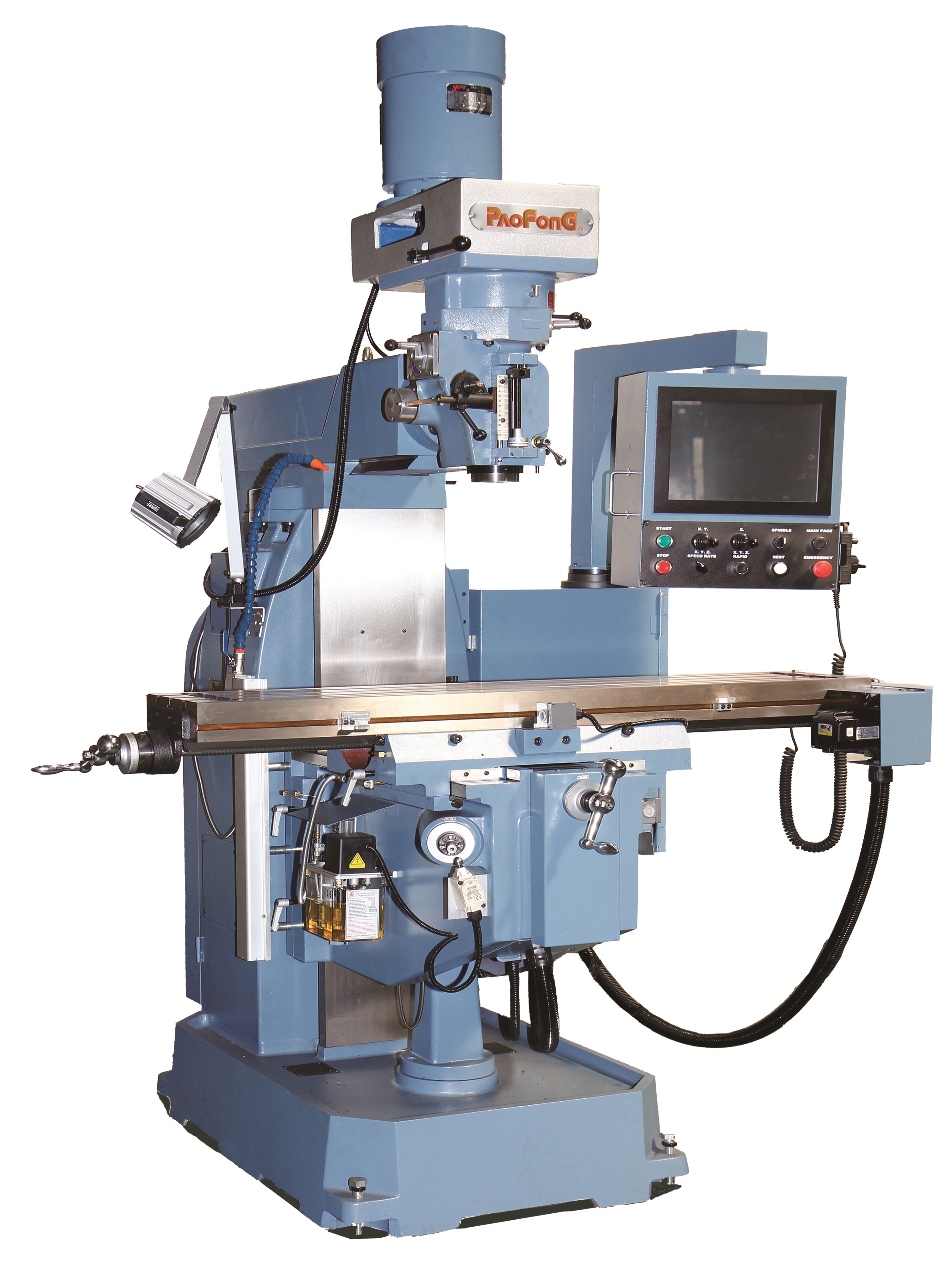

Want to save time on your milling operations, but aren’t ready to make the large investment required for a CNC milling machine? There is an efficient option.
Realizing the large price difference between “Traditional Milling Machines" and "CNC Milling Machines," and seeing the lack of intermediate products on the market, PaoFong focused on the design and manufacturing of Numerical Control (NC) Milling Machines that automate many traditional milling operations.
By incorporating relevant controller systems, many traditional, manual, or electric milling machines can be upgraded to smart automatic milling machines. Using G and M code editing programs, or CAD/CAM translation processing programs, workpieces can be mass-produced, while maintaining the immediacy and convenience of traditional milling machines. Based on a traditional milling machine structure, these machines are easy to maintain, and parts are easy to obtain.
The 15-inch, touch-screen control panel can interface with either a wired or wireless universal computer keyboard. The interface is easy to operate and can be customized to closely meet the user’s needs. The “Smart Machine” can use an API and CNC smart box, with a wired or wireless network, to allow the server to access the controller information and share the data with relevant decision makers.
All these features make for a very efficient milling machine that can do multiple processes, all at a very affordable price.
Pao Fong Industry Co., Ltd., established in 1986, specializes in the manufacturing of conventional milling machines, NC milling machines with CNC machine tools, and milling machines with Simple Automatic Control. Pao Fong’s innovative R&D designers, offer high-efficiency and high-quality machine tools for all customers.
Smart Factory Solutions for Metal Manufacturing
Innovation, Technology, Science and Customization
Established in 2013, Da Shiang Automation (DSA) is located in Guishan Industrial Park, Taoyuan, Taiwan. With the business philosophy of maintaining an Innovative, Technical, and Scientific Spirit to service our customers, DSA continues to grow.
As a highly skilled system integrator in automation, with software and hardware technical skills, DSA has more than 10 years of experiences in Investment Casting, Sand Casting, Die Casting and Machine Tending…etc. Below are 6 major services we provide:
AUTOMATIC SOLUTIONS FOR INVESTMENT CASTING, SAND CASTING, AND DIE CASTING PROCESSES
DSA provides turnkey solutions for casting automation, and is fully experienced in investment casting, sand casting, and die casting processes. Also, we offer complete hardware & software integration solutions for the setting up of a smart factory.
Automatic Solutions for Investment Casting Processes
Through the automated system integration of wax mold, shell mold, and casting processes, using robots to replace manual work in high-risk operating environments, we help improve production quality. Features of various systems include:
Wax Mold Process Automation
Fully automatic production, from wax molding process to wax tree assembly, can save manpower and improve production efficiency.
Shell Mold Process Automation
The system identifies the state of the shell mold through RFID and automatically integrates the dipping, coating, and drying processes.
The AI management system offers automatic parameter settings for shell mold processes.
The vertical conveyor drying room, with flexible production, can optimize the procedure of drying and save space.
The shell mold can be dried faster and maintain better quality by the design of the wind field.
Infrared Shell Mold Rapid Production System
The modular and parametric design can be used for various products.
It takes 50 hours to dry shell molds using traditional processes; however, it only takes 6 hours to complete drying with this system.
Compared to other traditional shell mold processes, it gives better quality.
Size, weight, and quality are standardized and stable.
Automatic Solutions for Sand Casting Processes
Provide the complete sand-casting automation process can contain the following: cold-core coating, laser marking, dispensing & molding assembly, screwing, handling system for sand casting.
Automatic Solutions for Die Casting Processes
Labor in high-risk environments can be replaced by integrating several die-casting processes with robots.
AUTOMATIC SOLUTIONS FOR POST-TREATMENT OF MACHINING & CASTING
DSA also provides turnkey solutions for post-treatment of machining & casting, and is fully experienced in deburring, grinding, polishing, sandblasting, and cutting.
Robotic Deburring, Grinding & Robotic Cutting Systems
Deburring & polishing for grinding gate, runner, parting line & weld bead.
Increasing productivity and safety, and saving labor.
Robotic Sandblasting Systems
Robotics, integrated with sandblasting systems, enhance quality and save labor. A second robot can also be integrated for loading/unloading, increasing automation of production.
AUTOMATIC SOLUTIONS FOR MACHINE AUTOMATION PROCESSES
DSA is fully experienced, and provides a third turnkey solution for machining automation.
CNC Machine Tending System
Machine Tending Systems with Linear Units
Enhance productivity by automation.
Automate design for turnkey projects.
Give a wide working range with external axis.
Provide appropriate automation solutions.
Approach real-time monitor and equipment status analysis by adding a DSA SCADA SMB system.
Introduce automatic production scheduling to achieve the best production efficiency.
Gantry Robots
Customized X, Y, Z axis work range.
End of Line Machine Automation
Integrating after-machining processes, such as deburring, measurement, leak detection, cleaning, assembly, and laser marking. Integrating the vision system to reduce fixture using and increase production flexibility.
CMM Machine Tending Automation Systems
Flexible pallets with RFID, barcode or vision systems can be applied in mixed lines. PLC system controls the CMM to achieve measurement automatically.
Above are our major services. Furthermore, in order to provide advanced smart automation solutions, DSA has integrated industry 4.0 concepts to casting and machine tending operations, to better fulfill customer expectations. We will keep improving to provide complete solutions and services for you.
